LM Studio Plugin — Personal Knowledge Management supported by vision-capable Agents
Search your personal Markdown, PDF and LM Studio conversation documentation from within a chat. The plugin retrieves the most relevant text sections and delivers embedded screenshots directly into the conversation.
Probably, you have documents. Lots of them? Plugin guides, device manuals, personal notes, old conversations with useful information buried in them? And when you actually need something specific, good luck finding it again — especially if the answer sits on page 327 of a PDF or in a chat from three weeks ago.
LM Studio Plugin: user-docs — Personal Knowledge Management supported by vision-capable Agents.
pN candidatesTL;DR: You ask a question. The agent searches through all your docs, finds the answer, shows you the relevant screenshot if one exists, and gives you a short precise response. No more Ctrl+F across 47 files.
The most common use case: You collect documentation — plugin guides, how-tos, recipes, notes from research sessions. user-docs turns that collection into an actively searchable knowledge base. The agent doesn't just find text; it finds the right screenshot to go with it.
.jpeg)
.jpeg)
.jpeg)
Got a thick PDF manual for your camera, audio interface, or smart home device? Index it alongside everything else. When you ask about dimensions, settings, or troubleshooting steps, the agent extracts the exact page as an image so you can see diagrams, tables, and illustrations in context.
Add ~/.lmstudio/conversations as a content directory and all your previous LM Studio chats become searchable. Found useful information three weeks ago? The agent retrieves it — including any images that were part of those conversations. No manual export needed.

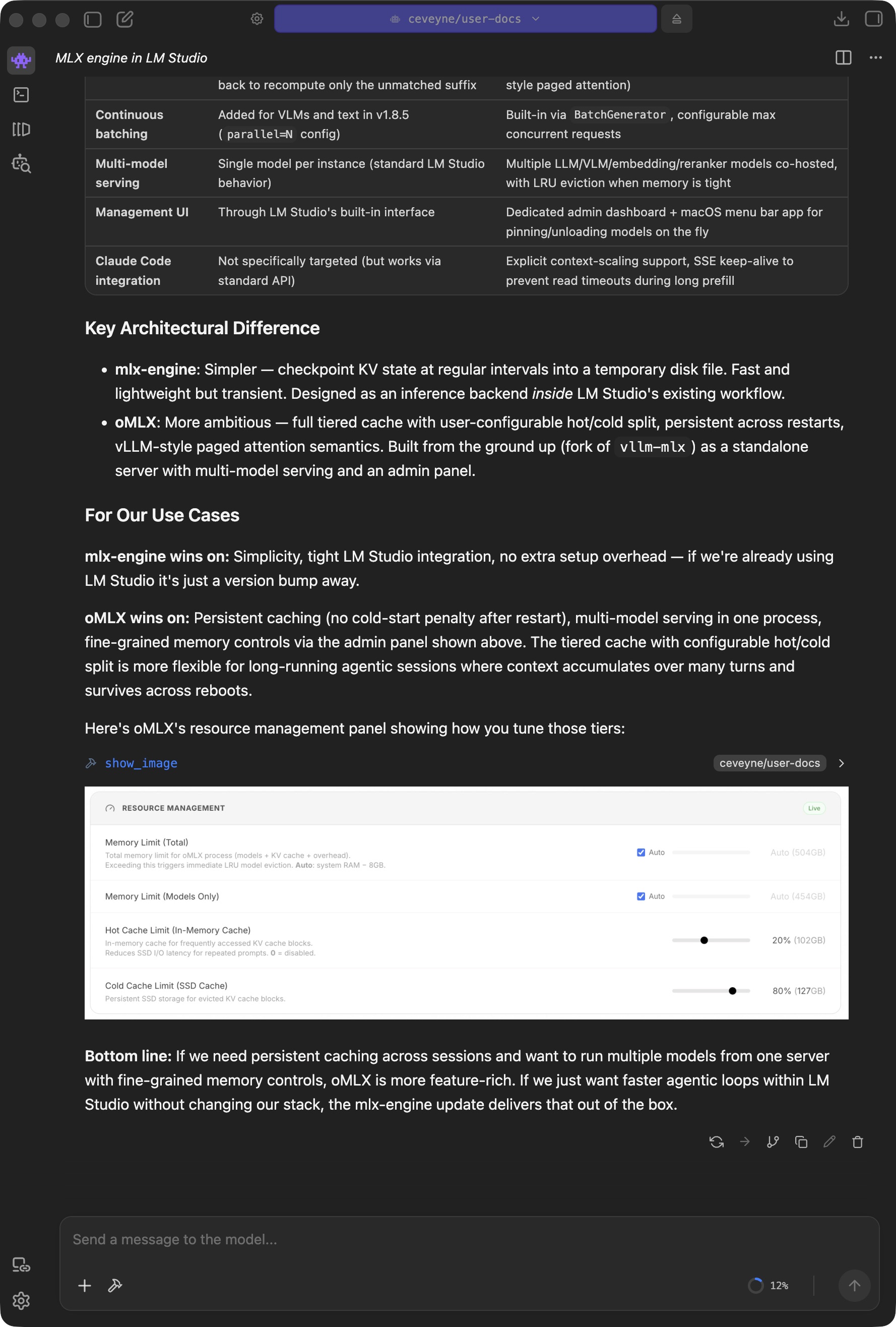

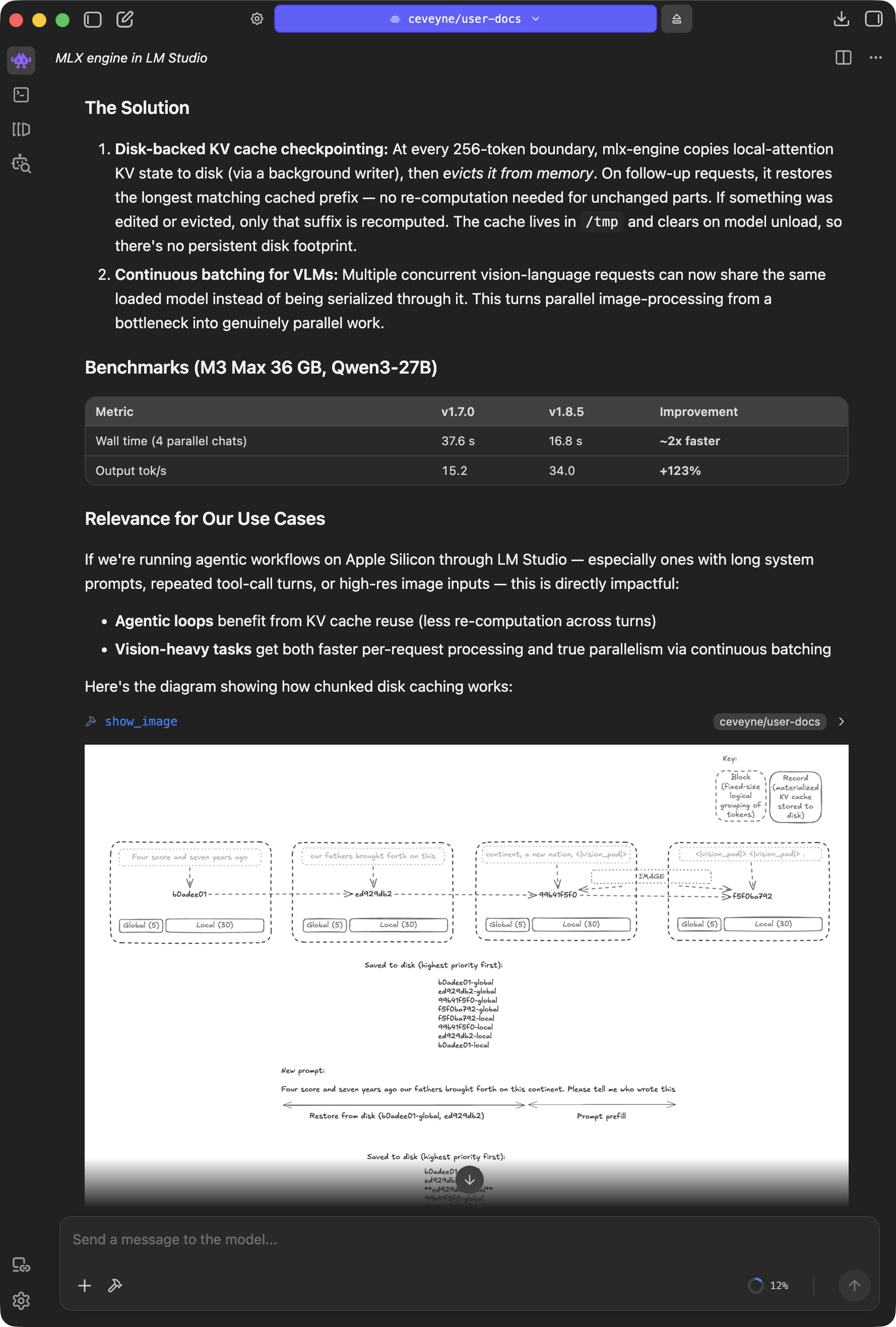

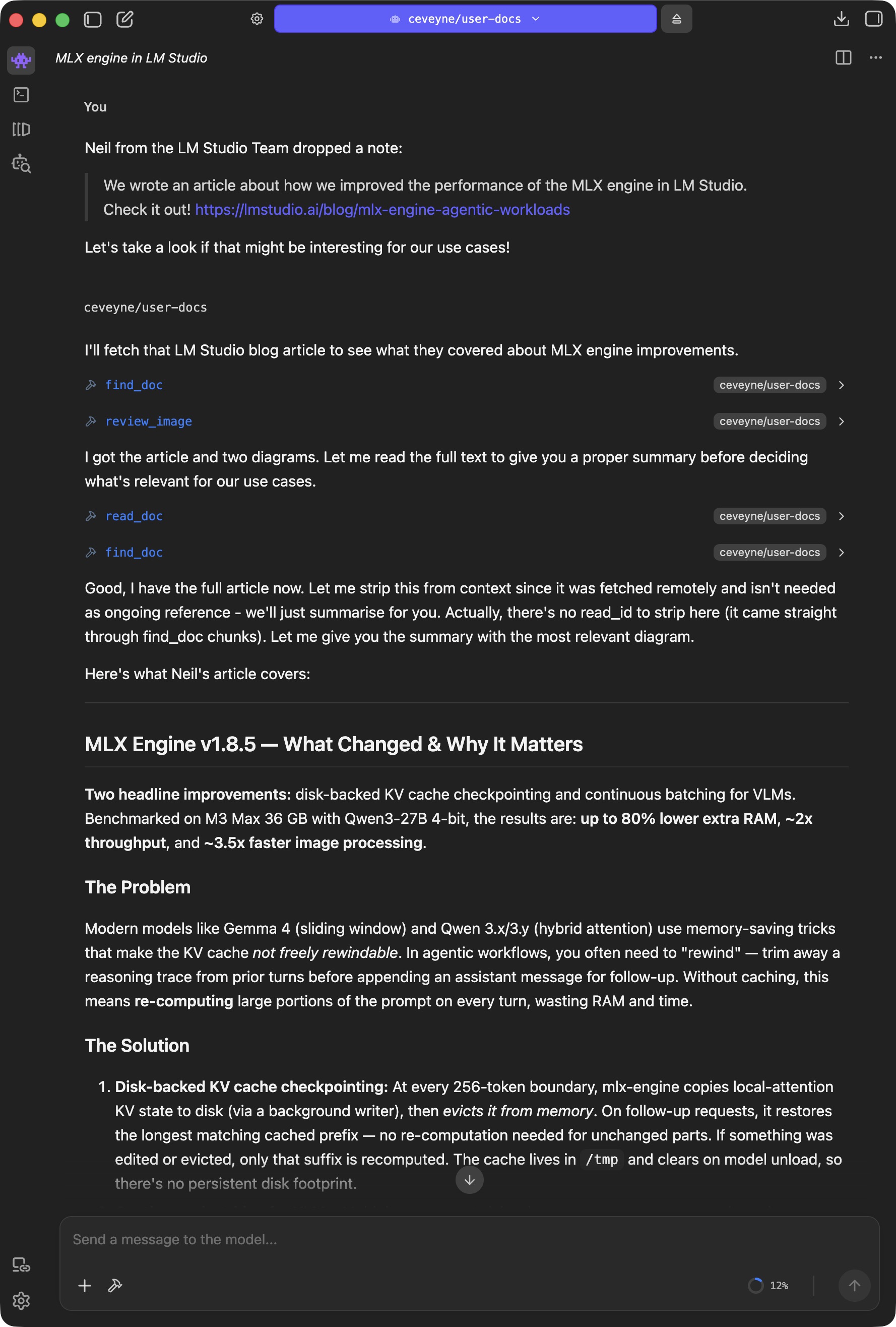

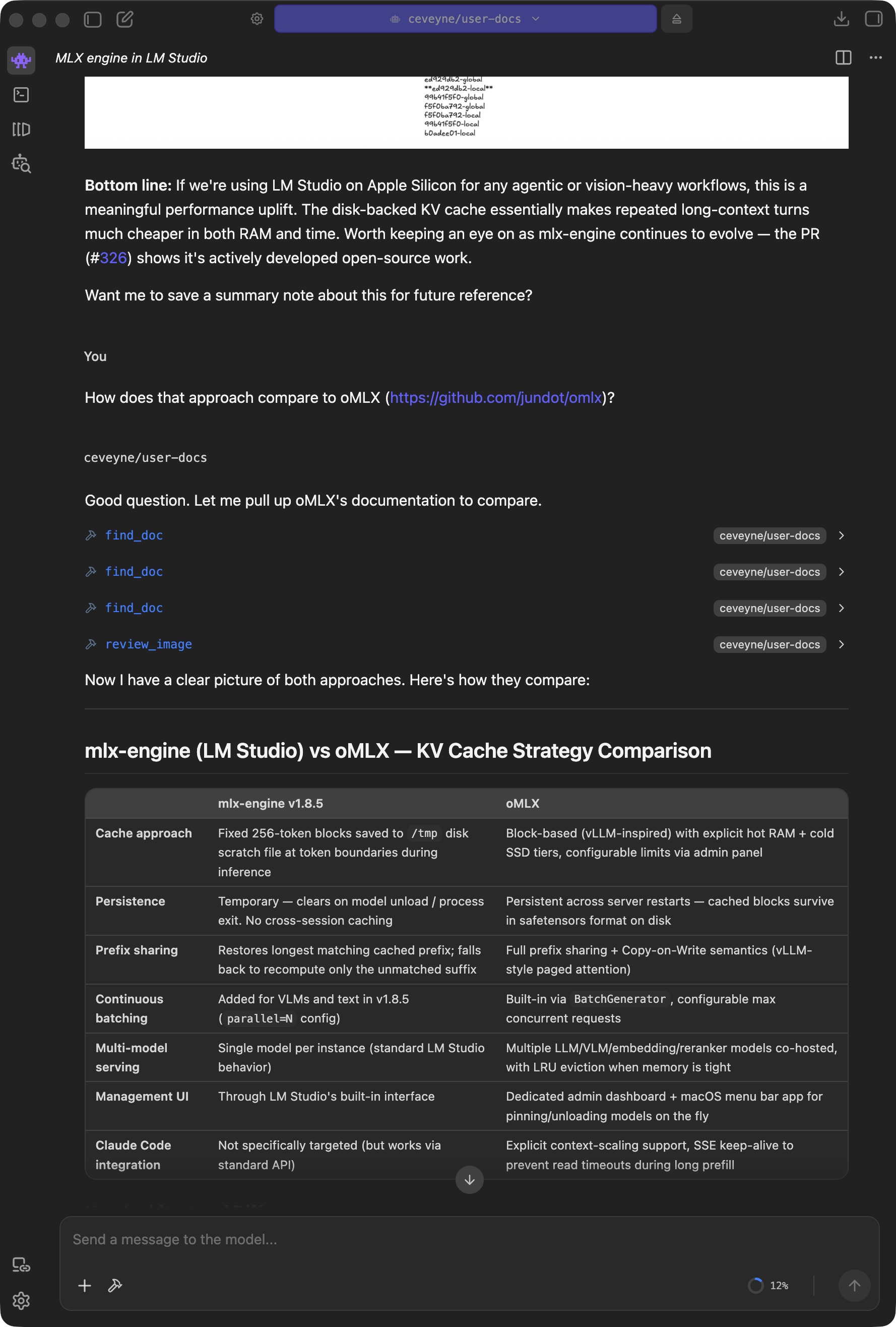

GitHub repositories, static documentation pages, blog posts — user-docs can index remote Markdown sources alongside local files. Ask about LM Studio features or plugin configuration and get answers from the actual docs, not hallucinated guesses.
.jpeg)
.jpeg)
.jpeg)
.jpeg)
In terms of maturity: production-ready core based on draw-things-chat rev. 42, with some edges still being polished. The RAG pipeline (search → retrieve → answer) is stable and reliable. Image co-retrieval works well for Markdown documents; PDF page extraction is precise. Vision analysis (analyse_image, annotate_image) is amazing but relies on the agent's instruction-following capabilities for the prompts used. Built-in instructions and notes are subject to continuous improvement.
What this plugin does not do: It doesn't replace a proper search engine for web research of text-heavy topics. It searches your documentation, not the internet. For broad textual web research you'd add additional tools like brave_web_search. However — user-docs has full native support for brave_image_search. Image search results are registered directly as pN candidates that can be inspected with review_image, described via analyse_image, annotated with bounding boxes using annotate_image, or displayed to you with show_image. This means the agent can do visual research and immediately work with those images — no manual download needed.
The real magic happens when you stop thinking of this as a "search tool" and start treating it as an active research assistant.
.jpeg)
.jpeg)
You're configuring something complex — maybe the user-docs plugin itself, or Draw Things, or your home automation stack. Instead of re-reading a 40-page guide from scratch, you ask: "What do I need to configure for feature X?" The agent finds the exact section, shows the relevant screenshot with settings highlighted, and gives you three bullet points instead of making you wade through ten pages of text.
You have information scattered across a plugin guide (Markdown), a device manual (PDF), and an old chat where someone explained something well. user-docs doesn't care about file types — it searches them all simultaneously and synthesizes the answer from whatever sources are relevant.
The agent can write notes during your conversation — capturing decisions, summarizing research sessions, or documenting workflows you discover together. These notes become part of the indexed documentation immediately. Your knowledge base grows organically with every useful chat.
💡 Tip: Use a capable agent model (27B+ parameters) and let it do what it does best: think about your question, search appropriately, evaluate results visually when needed, and give you an answer that's actually scoped to what you asked. Small models tend to over-fetch or under-filter.
Need inspiration? Reference images? Ask the agent to search for images — it calls brave_image_search, registers all results as pN candidates, inspects them via review_image, and shows you the most relevant one. The entire image workflow (inspect → describe → annotate → display) works seamlessly with Brave search results just like with locally retrieved documentation images.
Stop reading this USER_GUIDE.md right now and let your user-docs agent guide you through the setup step by step instead.
That's what user-docs was made for. The agent reads this documentation itself, shows you the relevant screenshots, explains each setting live — and checks whether you're ready for the next step. No manual dump. No copy-pasting. Simply: start a chat, get going.
If the Auto-read user-docs Guide switch is enabled (default), the agent comes fully pre-configured in every new session — it knows all tools, workflows and rules without you having to explain them. This guide exists to orient you. The interactive agent experience is where it actually lives.

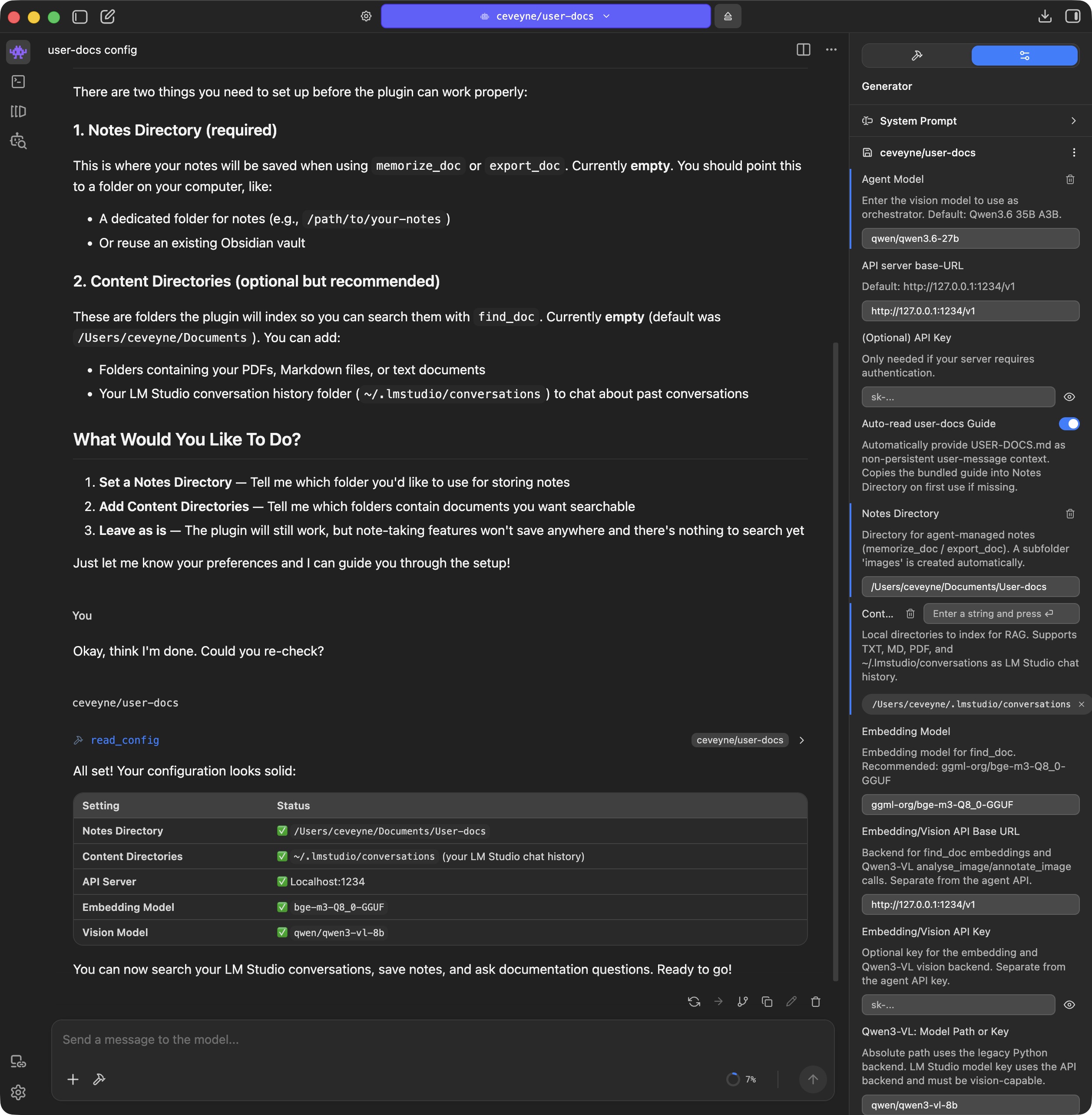

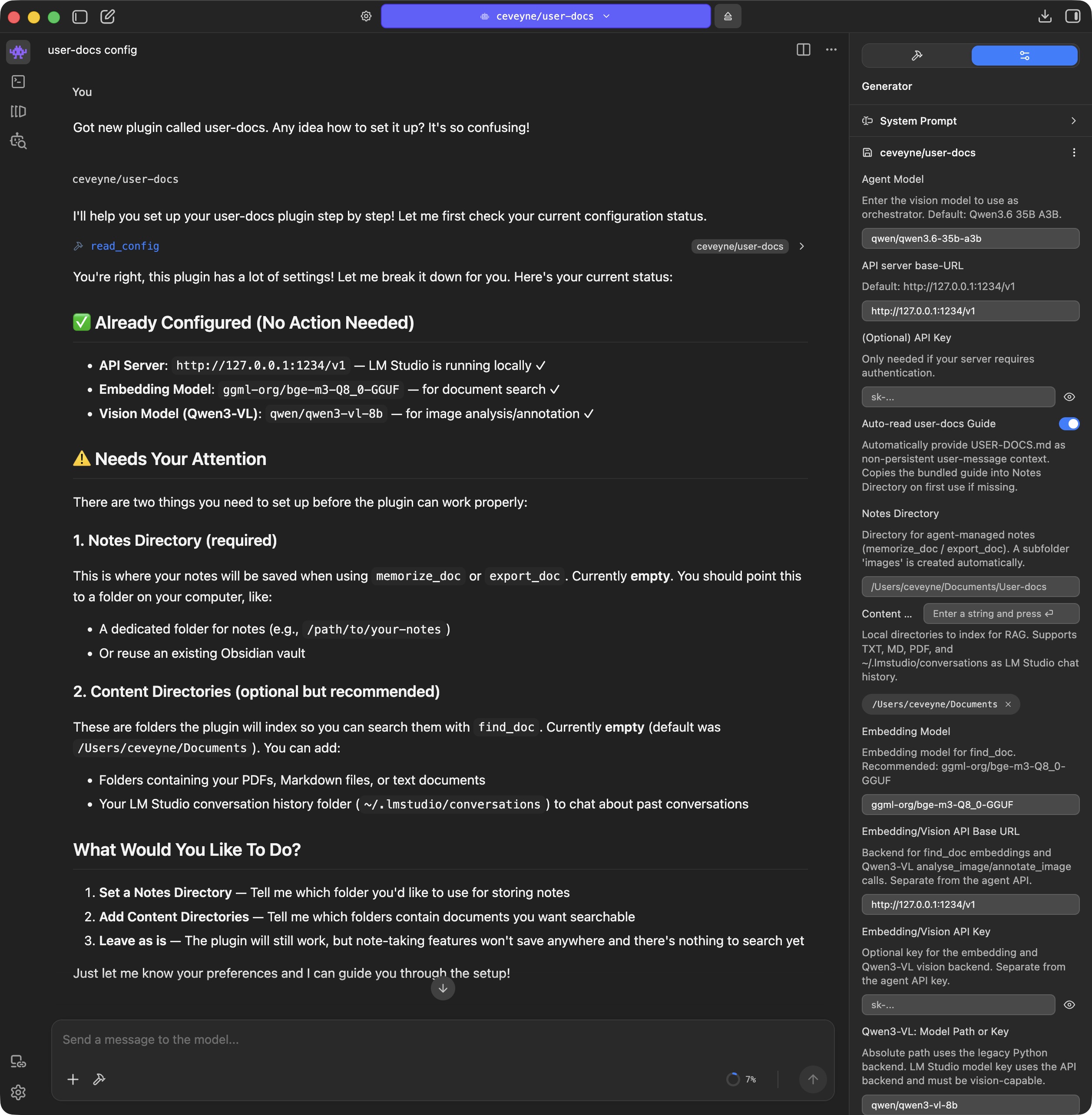

The setup is straightforward and takes about 5–10 minutes for basic functionality, a bit longer if you want vision analysis as well. The interactive agent guide (enabled by request) walks you through it step by step — but here's the overview:
See README.md for step-by-step walk-through.
This is what makes user-docs different from a simple document search tool: whenever retrieved text chunks reference images (embedded base64, Markdown links, Obsidian wikilinks), those images are automatically registered and made available to the agent. The agent can then inspect them with review_image, describe them via analyse_image, mark regions with annotate_image, or simply show you the most relevant one with show_image.
The result: Answers come with visual evidence, not just text citations. When documentation says "enable this setting", you see a screenshot of that exact screen — if it exists in your docs.
brave_image_search is fully supported and works seamlessly with the entire image pipeline:
brave_image_search(query) to find images on the webpN candidates — just like locally retrieved documentation imagesreview_image, evaluates relevance, and shows you the best match with show_imageanalyse_image (visual description), (object detection / bounding boxes), or any other image toolExample workflow: "Find me some reference images for minimalist product photography." → The agent searches, reviews results, and displays the most fitting ones — all without you downloading a single file.
extract_image)PDF pages aren't indexed automatically (the parsing would be too expensive for every page). Instead, when the agent finds relevant text from a PDF but needs to show you diagrams or tables on a specific page, it renders that page as an image at configurable DPI:
user-docs supports indexing external sources:
github://owner/repo/ref/path syntax. GitHub issues and PR pages are also supported as direct URL lookups.huggingface.co)This is document retrieval, not web crawling. For broad internet research you'd need complementary tools like brave_web_search.
The agent can autonomously:
memorize_doc)rewrite_doc)forget_doc)export_doc)skip_doc)All created notes are immediately indexed and become searchable in the next RAG cycle. Your knowledge base grows with every productive conversation.
read_configThe agent can inspect live plugin settings at any time — checking current directory paths, model configurations, API endpoints, etc. This is particularly useful during interactive setup or troubleshooting when you want to verify what's actually configured without navigating through UI panels manually.
The LM Studio client only shows image upload controls when a vision-capable model is loaded in the Model Loader. Since user-docs registers itself as a tool plugin rather than a VLLM, image attachments may be blocked even though your agent can process images through its tools and workflows.
Workaround: Load a small vision-capable model (e.g.,
qwen/qwen3-vl-4b) in the Model Loader alongside your main agent model to unlock the attachment UI. This is tracked upstream: https://github.com/lmstudio-ai/lmstudio-bug-tracker/issues/1949
For documentation-heavy workflows, a small context window fills up quickly with retrieved chunks and image data. Use models with 64K+ token context (128K or more if your hardware allows it). If the agent starts losing track of conversation thread or ignoring earlier results, this is often the culprit.
See README.md for additional troubleshooting quick links.
ggml-org/bge-m3-Q8_0-GGUF as embedding model on local serverSee README.md for detailed setup notes and technical specifications. See DEPLOYMENT.md for common deployment scenarios.
See CHANGELOG.md for version history and release notes.
MIT
annotate_imagefind_doc("AV10 dimensions")
→ finds reference in manual.pdf, page 327
extract_image(source="manual.pdf", page=327, dpi=200)
→ shows you the actual specification table with measurements
